Six flaps of the electro hydraulic garbage grab Structure Q355 material

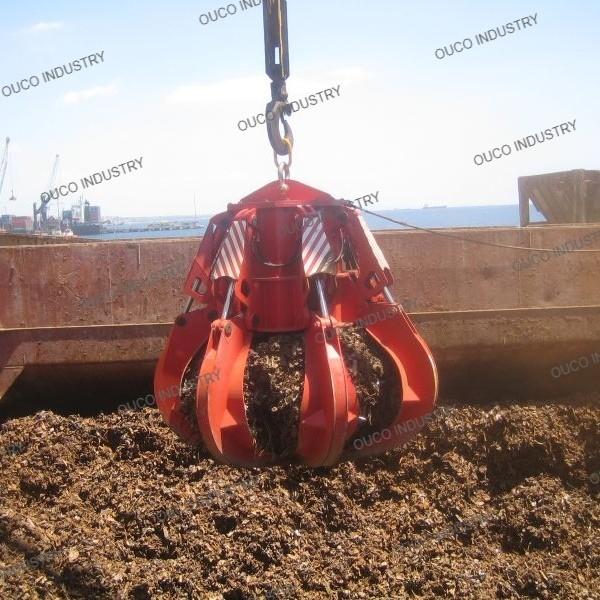

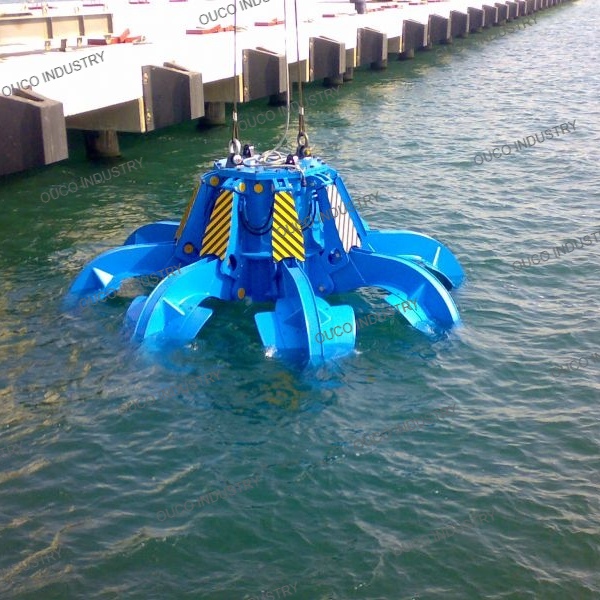

The six flaps of the electro-hydraulic garbage grab are assembled with the frame through the main pin shaft, forming a lotus shape when it works. The oil cylinder connected to the bucket flap controls the closure and opening of the bucket flap to grab or drop materials. High alloy steel is used for precision machining and quenching of the main pin shaft.Bucket tip is made of wear-resistant alloy cast steel. The frame is a basic part, which is made of a wear-resistant steel plate. The hydraulic pump station is installed in the frame, which is composed of a motor, high-pressure plunger pump, and control valve block.The lower space of the frame becomes the oil tank of the hydraulic system. The hydraulic pump station can be removed from the frame without dismantling the wire rope, which is easy for maintenance. The two ends of the oil cylinder are respectively fixed on the upper part of the frame and the bucket disc with the joint bearing. As the cylinder rod extends and retracts, the flap closes and opens. The main components of the hydraulic system are famous products, which make the grab have excellent performance. Grab can work in all kinds of severe environments.

Specifications

Product Picture

Our company

Exhibitions

Certifications

Founded in February 1984, OUCO Industry occupies a 48,000-square-meter facility, including 35,000 square meters of construction area. Our headquarters in Jiangsu Province, the heart of China's crane industry, positions us at the center of advanced machinery manufacturing.

Our team of over 150 employees includes 20 skilled technical staff, among them five senior-level and 10 mid-level professionals. We employ 50 certified welders holding qualifications from leading institutions such as CCS and ABS. OUCO also maintains a dedicated team of certified flaw detection experts, quality system auditors, and experienced inspection personnel, ensuring the highest quality standards.

OUCO provides high-quality handling equipment and one-stop solutions for the marine and port industries. We develop, design, and manufacture marine cranes, grab buckets, LARS systems, and environmental protection products. Our products serve a wide range of industries, including metallurgy, shipbuilding, ports, power generation, petroleum, building materials, wind power, and chemicals.

With strategic operations across Europe, Asia, Africa, Australia, and the Middle East, OUCO serves a diverse global clientele. Our annual steel structure production capacity is 11,000 tons.
