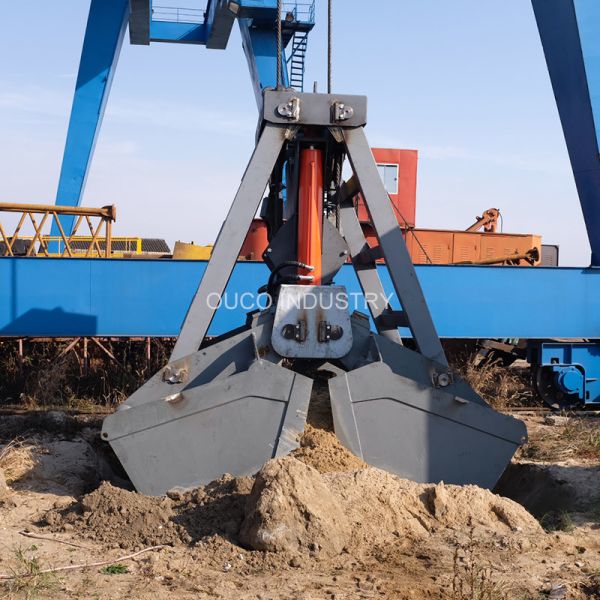

OUCO Radio Remote Control Grab
Product Description
OUCO remote control grab bucket whose transmitter can be operated up to a max distance of 100 meter from the grab, which is fitted with remote control receiver. The grab can be operated approx 30 days before the batteries need to be charged.
Features And Advantages
1. Designed to single wired cranes.
2. No need any electric supply or motor, runs with battery.
3. Opens by radio remote control, closes by rope equipment.
4. When a cylinder fails, it can work single cylinder for a while.
5. Manufactured in range of 1 CBM to 50 CBM capacity.
GA And Parameters
Technical specification
| Type | Volume(m3) | Crane Capacity(t) | Grab Weight(t) | Cargo Weight(t) | Working Height(m) | |
| OUCO12-5.0-1.0-00 | 5 | 12 | 5 | 7 | 8.2 | Standard |
| OUCO12-6.0-1.0-00 | 6 | 12 | 5.7 | 6.3 | 8.2 | Standard |
| OUCO-J4~8.0-1.0-00 | 4~8 | 16 | 7.5 | 8.5 | 9.1 | Standard |
| OUCO-J5~10.0-1.0-00 | 5~10 | 20 | 8.2 | 11.8 | 9.4 | Standard |
| OUCOJ6~12.0-1.0-00 | 6~12 | 24 | 9 | 15 | 9.6 | Standard |
| OUCO-J7~14.0-1.0-00 | 7~14 | 26 | 10.5 | 15.5 | 10 | Standard |
| OUCO-J8~16.0-1.0-00 | 8~16 | 28 | 11 | 17 | 11 | Standard |
| OUCO-J9~18.0-1.0-00 | 9~18 | 30 | 11.5 | 18.5 | 11.5 | Standard |
| OUCO-J10~20.0-1.0-00 | 10~20 | 32 | 12 | 20 | 12 | Standard |
| OUCO-J11~22.0-1.0-00 | 11~22 | 35 | 13 | 22 | 12.8 | Standard |
| OUCO-J16~32.0-1.0-00 | 16~32 | 50 | 19 | 31 | 15.5 | Standard |
| OUCO-J20~40.0-1.0-00 | 20~40 | 70 | 28 | 42 | 18 | Standard |
Production Process
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing
factory, excellent European management who has 47 years of experience on offshore business, which
also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane,
non-standard steel structure, more environmental-friendly operations and also truck crane with the range
from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
|
|
