    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-0.6T5M-TB-00
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes

    0.6T@5M Telescopic Boom Marine Crane


    The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Coast Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments.
    All of the cranes in the Telescopic Boom line offer several key features that make them powerful solutions for the marine work environment. The most notable of these features include: Extended boom reach with the dexterity for accurate, safe, and efficient material handling.


    Specifications

    SWL0.6t5m
    Working Radius1~5m
    Hoisting Speed18m/min
    Hoisting Height12m
    Slewing Speed~1.5r/min
    Slewing Angle360°
    Luffing Angle0-75°
    Design Temperature-10° - +45 °
    Tirm≤2°
    Heel≤5°
    HPU7.5KW
    Hydraulic system pressure18Mpa
    Power sourceAC380V, 50Hz, 3P
    Protect ClassIP56
    Hydraulic syste flow20L/min
    Dead weight + HPU weight580kg +200kg


    Product Description
    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes

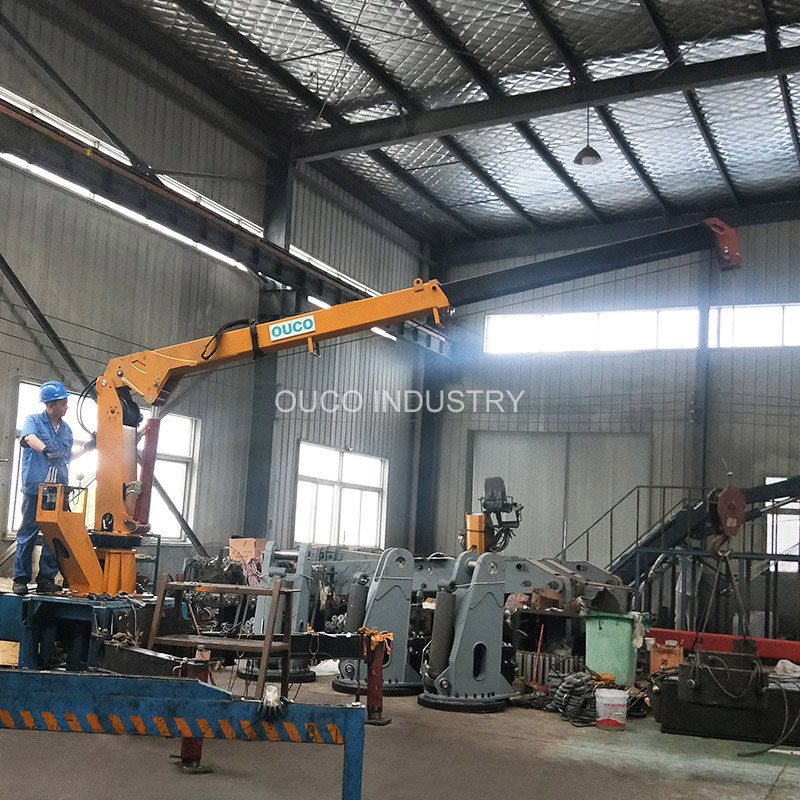

    Production Process

    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes
    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes

    Company Information
    OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China. OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.


    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes

    0.6t 5m Hydraulic Pedestal Mouted Small Marine Cranes
    FQA

    1.Q:What's the information should I provide when inquiry?
    A: More details or drawings, better.

    a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.

    2.Q: How many operating methods for my selection?
    A:Standard operating methodsr:
    a: pendent controller with push buttons. b: remote control with push buttons
    c: cabin(space capsule seat) control with joystick. Choose any type as you like.

    3. Q:Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    4. Q:Can you provide the serious lifting tools?

    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
    5. Q:How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training.
    6. Q:Safety device
    A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
