    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-2T5M-00
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 500 Sets per year
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

    2T5M Knuckle and Telescopic Boom Marine Crane

    The TB series yacht marine crane/davit is designed as an electro-hydraulic driven telescopic boom/jib small crane, with electro-hydraulic power unit installed under deck, delivered as a complete unit ready for installation to yacht. The crane/davit is equipped with hydraulic operated winch, hydraulic operated luffing and and hydraulic operator extension and hydraulic operated slewing system. All cranes/davits are reliabel and easy to use. Normally TB series yacht crane/ davits are for jet ski purpose.


    Specifications

    SWL2t5m
    Max. Working radius5m
    Min. Working radius1.6m
    Hoisting speed0-12m/min
    Hook travel20m
    Slewing speed0-1r/min
    Slewing angle360º free
    Luffing time~40s
    Luffing angle0~75º
    Design temperature-20º~+45º
    Working conditionTRIM≦2º
    HEEL≦5º
    MotorPower : 7.5Kw
    Working pressure18Mpa
    Advised oil flow20L/min

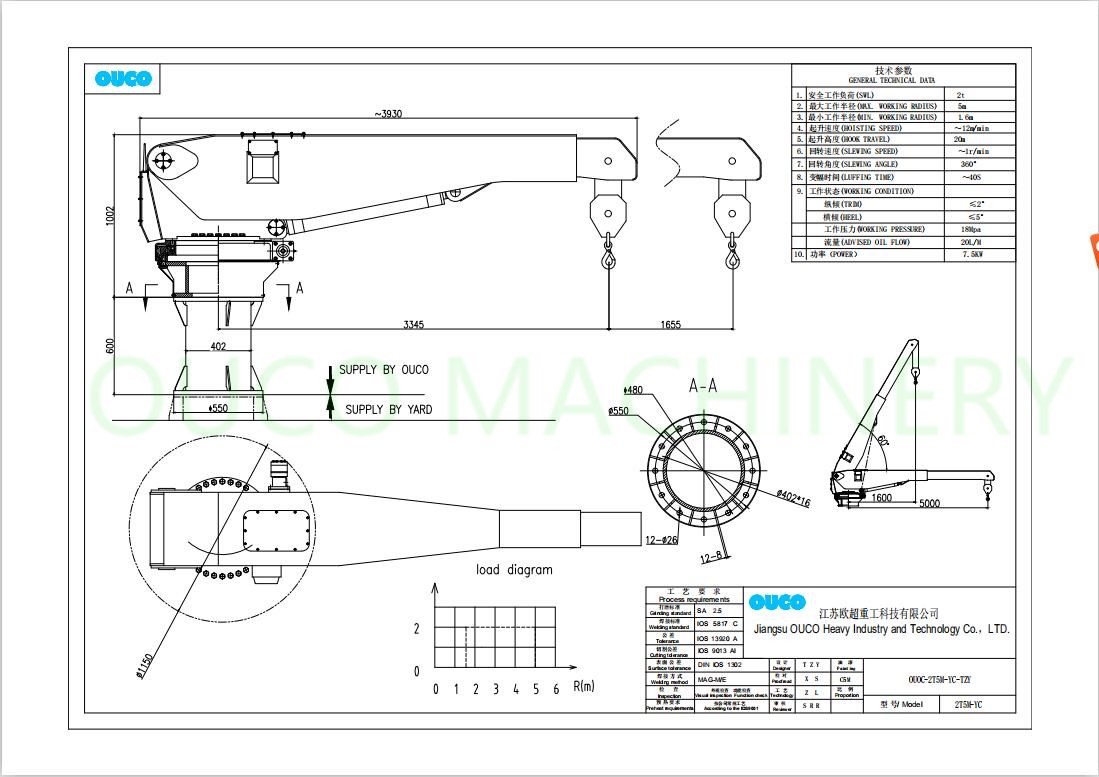

    GA Drawing

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

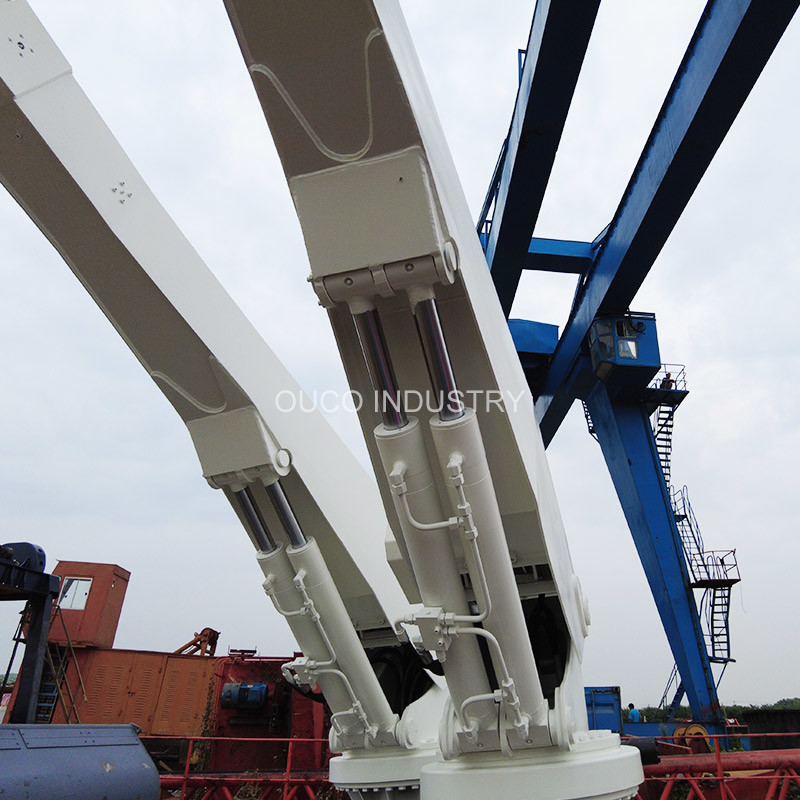

    Detail Images

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

    Production Process

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine


    Company Profile

    Jiangsu OUCO Heavy Industry and Technology Co., Ltd

    The OUCO Marine Group provides high quality handling solutions and access systems for the

    marine and offshore industries.Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Marine Group
    has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia,
    Africa, Australia and Middle East. With years of experience, the OUCO Marine Group has its own
    designing team and manufacturing factory, excellent European management who has 47 years of
    experience on offshore business, which also provides after sales services overseas.

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

    After-Sales Service

    1. Engineers available to serve machinery overseas.
    2. Instruct your workers how to install and use the machine.
    3. 24 months free maintenance.

    Customer visits

    Every year, many of our clients will come to our factory to check the producing conditions and we are

    in the good relationship with many clients.

    2T 5M Telescoping Boom Crane For Barge Offshore Pedestal Marine

    FAQ
    1. Q: What's working radius of your crane?
    A: From 1m to 100m, we can design and make according to your requirement.
    2. Q: Which crane type should I choose?
    A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
    3. Q: Can this crane be explosion proof?
    A: Sure, we can equip any extra function based on your requirement.
    4. Q: Does your crane have safety devices?
    A: Of course, we have all cut off limits and alarms for safety reasons.
    5. Q: How can I install the crane to my vessel?
    A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
