1.5t4m stiff boom Yacht Crane with IACS certified
Product Description
The crane is installed with a rolled steel pedestal for bolting or
welding to deck with a height of OUCO standard and pedestal
diameter is depend on the SWL of the crane. The standard SB crane
will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be
designed in accordance to any leading classification societies
which is upon request. The crane shall be tested and adjusted ready
for installation by welding or bolting to vessel deck. Power
connection shall be provided for electrical supply through
integrated electrical slip rings.
SB series crane: End User Advantages:
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales service support.
Specifications
| Item | Specification |
| SWL | 1.5 t |
| Working condition | HEEL≦5° |
| TRIM ≦2° |
| Working radius | 4m |
| Hoist speed | ~10m/min |
| Slewing Speed | 0~0.8r/min |
| Slewing Angle | ~360° all free |
| Design temperature | -10℃~45℃ |
| Self-Weight Of Crane | ~600 kg |
| Painting Standard | C5M |
GA Drawing

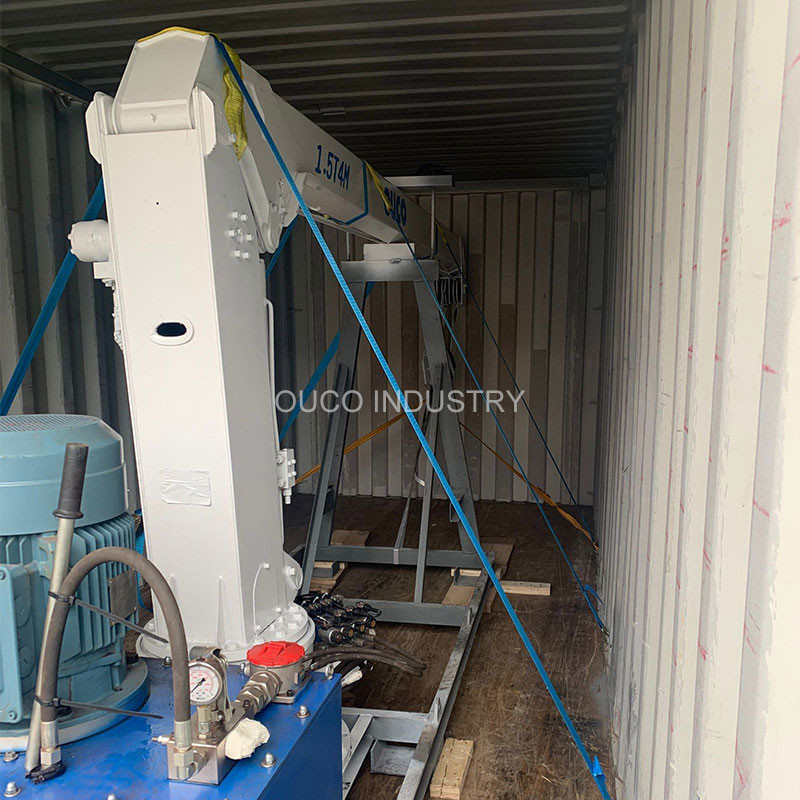

Product Display
Product Process
Company Profile
Jiangsu OUCO Heavy Industry and Technology Co., Ltd
The OUCO Marine Group provides high quality handling solutions and
access systems for the
marine and offshore industries.Headquartered in beautiful Wuxi,
Jiangsu, China, OUCO Marine Group
has subsidiaries in several countries and serves a global client
base from strategic points in Europe, Asia,
Africa, Australia and Middle East. With years of experience, the
OUCO Marine Group has its own
designing team and manufacturing factory, excellent European
management who has 47 years of
experience on offshore business, which also provides after sales
services overseas.
Workshop
Our factory can design and manufacture any type marine/offshore
cranes based on your technical requirements. We are competitive as
we have low labor cost. Our products are with good quality because
we use European components in our
cranes. Not only do we deliver good products, by experience we also
know that a crane is a one-time investment for a client
and how important it is to do repairs at location in a short time
as most clients have to deal with a high day-rate from their
vessels. “Down-time” is expensive. Do not hesitate, please feel
free to send inquiries to us.
Customer visits
Every year, many of our clients will come to our factory to check
the producing conditions and we are
in the good relationship with many clients.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock
protection device.
