2.5t 22m Ship Deck Cranes ABS BV CCS RMRS Certificate Foldable And Telescopic

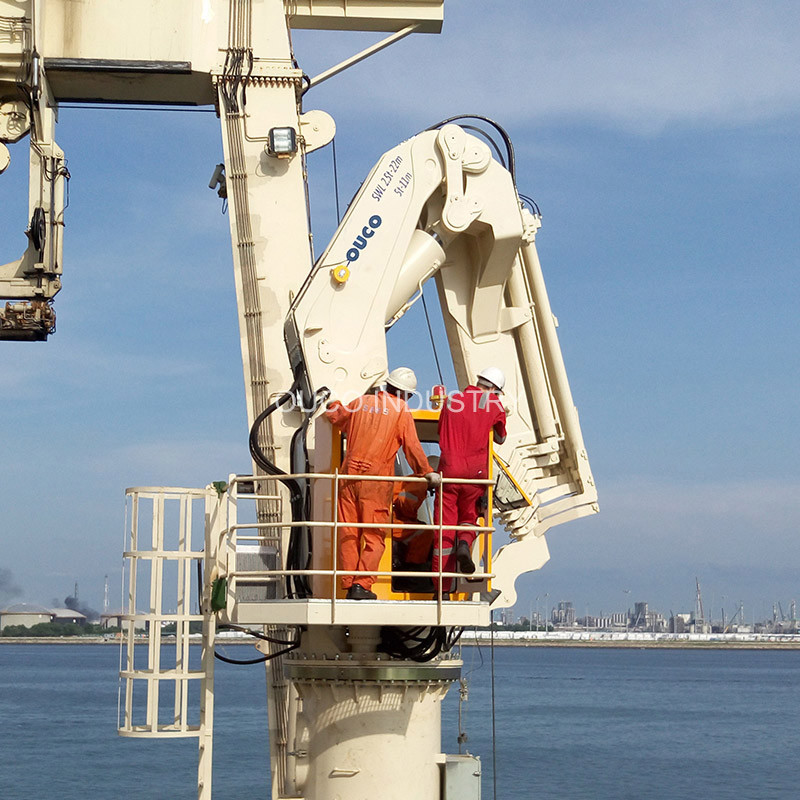

OUCO 2.5T22M knuckle and telescopic was delivered in 3 months time with full CCS Class and being installed in.
Singapore within 7 days by OUCO service engineers’ guide.
OUCO Marine/Offshore 2.5T foldable crane Knuckle Boom Crane Marine Crane Pedestal crane
OUCO Marine/Offshore Foldable and telescopic boom compound marine cranes would be the type of effortless cranes
with foldable and telescopic booms compound, which make full use of the cranes’ strengths and flexibility when loading
and unloading goods. OUCO Marine group can design the foldable cranes based on API-2C regulations and rules.
Specification
| 1 | CRANE TYPE | 2.5t @22m Max. Working radius:22m. Hydraulic Telescopic Boom offshore Crane |
| 2 | CERTIFICATION | ABS under sea state 2 |
| 3 | QUANTITY | 1 set |
| 4 | HEEL/TRIM | 5°/2° |
| 5 | AMBIENT TEMPERATURE | -9.9°C~+45°C |
| 6 | SWL | 2.5t @22m |
| 7 | MAX WORKING DADIUS | 22m |
| 8 | MIN WORKING DADIUS | 4m |
| 9 | HOISTING SPEED | 0~10m/min(main hook) ~30m/min (aux hook) |
| 10 | LIFTING HEIGHT | ~30m |
| 11 | SLEWING ANGLE | ~360° all free |
| 12 | SLEWING SPEED | 0~0.5r/min |
| 13 | LUFFER TIME | 120s |
| 14 | SELF WEIGHT OF CRANE | ~39t(Confirmed in approval drawing) |
GA Drawing
Product Details
Production Process
Company Information
FAQ
1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.
a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.
2.Q: How many operating methods for my selection?
A:Standard operating methodsr:
a: pendent controller with push buttons. b: remote control with
push buttons
c: cabin(space capsule seat) control with joystick. Choose any type
as you like.
3. Q:Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
4. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
5. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide
service and training.
6. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock
protection device.
|
|
