    1.5t 2.7m Small Stiff Boom Davit Crane For Boat

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-1.5T2.7M-YC
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

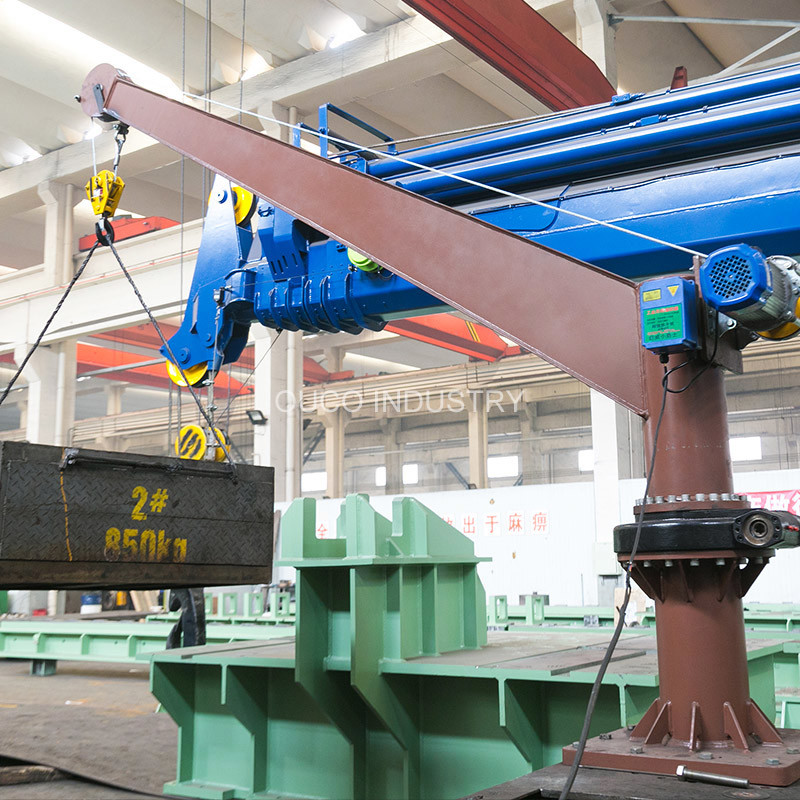

    1.5t 2.7m Small Stiff Boom Davit Crane For Boat

    1.5T2.7M Stiff Boom Yacht Use Small Marine Deck Crane

    The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional.

    The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.

    SB series crane: End User Advantages:

    1. Compact design

    2. Small footprint

    3. Delivered as one complete unit ready for installation to vessels

    4. Easy access for periodic maintenance, service and repair

    5. 24 hours after sales searvices support.

    Product information

    SWL1.5T@2.7M
    Max. Working radius2.7m
    Min. Working radius3m
    Hoisting speed0~10m/min
    Hoisting height20m
    Slewing speed~0.6r/min
    Slewing angle360º
    Luffing time~90s
    Working conditionTRIM≦2º
    HEEL≦5º
    Power7.5kw
    Speed1740r/min
    Insukate classF
    Power resourceAC440V/60HZ
    Protect classIP44
    Working typeS1

    Technical specification

    1.5t 2.7m Small Stiff Boom Davit Crane For Boat

    Product Display

    1.5t 2.7m Small Stiff Boom Davit Crane For Boat1.5t 2.7m Small Stiff Boom Davit Crane For Boat1.5t 2.7m Small Stiff Boom Davit Crane For Boat1.5t 2.7m Small Stiff Boom Davit Crane For Boat

    Company Profile

    Jiangsu OUCO Heavy Industry and Technology Co., Ltd

    The OUCO Marine Group provides high quality handling solutions and access systems for the marine and offshore industries.Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Marine Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East.

    With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

    1.5t 2.7m Small Stiff Boom Davit Crane For Boat

    Production Process

    1.5t 2.7m Small Stiff Boom Davit Crane For Boat1.5t 2.7m Small Stiff Boom Davit Crane For Boat1.5t 2.7m Small Stiff Boom Davit Crane For Boat1.5t 2.7m Small Stiff Boom Davit Crane For Boat


    FAQ

    1.Q:What's the information should I provide when inquiry?
    A: More details or drawings, better.

    a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.

    2.Q: How many operating methods for my selection?
    A:Standard operating methodsr:
    a: pendent controller with push buttons. b: remote control with push buttons
    c: cabin(space capsule seat) control with joystick. Choose any type as you like.

    3. Q:Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    4. Q:Can you provide the serious lifting tools?

    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!

    5. Q:How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training.

    6. Q:Safety device
    A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
