    1.5t 10m Marine Knuckle Boom Crane Iso Certification

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-1.5T10M-KB
    Certification : ABS/CCS/BV/RMRS
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets/year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    1.5t 10m Marine Knuckle Boom Crane Iso Certification

    1.5T10M Knuckle Boom ISO Certification Marine Cranes


    Product Description

    1.5T10M Knuckle Boom Marine Cranes support outdoor operations, Knuckle Boom Marine Cranes have been widely used in ports, factories, stations, construction sites, etc. Turnover and loading and unloading of trucks and ships can be greatly improved.
    It has the advantages of advanced performance, high work efficiency, compact structure, safety and stability, flexible operation, easy maintenance, beautiful appearance, etc. It supports customization and is suitable for limited spaces such as ports and wharves, and is suitable for empty and full-load work by sea and ground vehicle transportation. requirements.


    Features and Advantages

    1. Simple construction, easy to maintain and replace parts;

    2. Strictly abide by international safety regulations and provide inspection certificates;

    3. Adopt overload protection and use components of internationally renowned brands;

    4. With extensive durability testing, it is convenient for future upgrades and prolongs the service life of the machine.

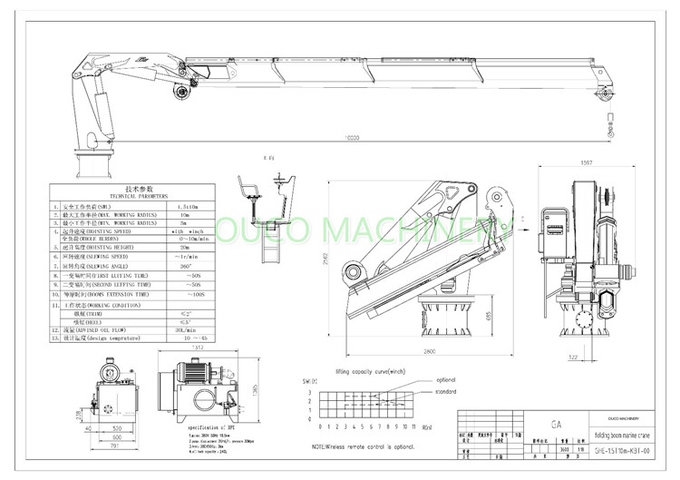

    GA Drawing

    C5-M Level Painting Foldable Boom ISO Marine Deck Cranes 1


    Specification

    SWL1.5T@10M
    MAX WORKING RADIUS10m
    MIN WORKING RADIUS3m
    HOISTING SPEED0~10m/min
    HOISTING HEIGHT20m
    SLEWING SPEED~1.0r/min
    SLEWING ANGLE360°
    LUFFING TIME~ 45s
    KNUCKLE BOOM TIME~ 150s
    EXTENSION TIME~150s
    WORKING CONDITION

    TRIM ≤2°

    HEEL ≤5°

    POWER15kw
    Speed1780r/min
    PROTECT CLASSIP56
    WORKING TYPES1

    Our Company

    Hydraulic 1.5T 10M Telescopic Boom Marine Gantry Crane 2

    With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

    Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

    OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

    We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.


    FAQ

    1. Can this type work in hazardous environment?
    Sure! We can customize for you, acid proof or explosion proof, no problem for that.
    2. Can you provide the serious lifting tools?
    Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
    3. How can we install the crane?
    Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
    4. Safety device
    Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
