    Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-EH-40
    Certification : ISO9001/CE
    Supply Ability : 100 sets per year
    Delivery Time : 90 days
    Price : Negotiation
    • Product Details
    • Company Profile

    Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper

    Discharge Tire Mounted Wooden Pellet 40CBM Eco Hopper


    Product Feature

    1. The hoppers Large bucket capacity, and large open area
    2. The hoppers are large stowing surface, and accordingly high coefficient of fullness
    3. The hoppers are made of top quality structural and high strength steel, the adapters are made of domestic top quality products
    4. The hoppers save working time, improve working efficiency.

    Specification

    Capacity~500t/h(up to crane)
    MaterialWood pellet
    Density0.7t/m3
    Discharge toContainer
    Volume~40m3
    Thickness of wallT8*Q345B
    LiningNM400*T5mm
    Load of tire~14t
    Travelling speed10m/min (by towing)
    Weight~85t
    Power~105Kw

    Product Description

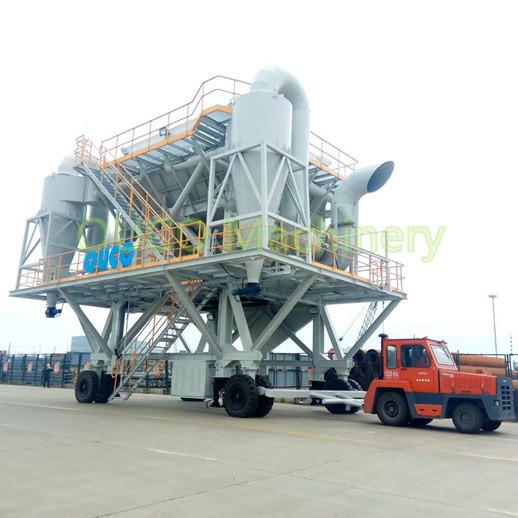

    The Cyclone Eco Hopper, a dust controlled grab unloading hopper is an economical and ecologically sensitive solution fulfilling all needs for the efficient import of dry bulk cargoes.

    The dust removal mechanism is to make the dust-containing airflow rotate, and the dust particles are separated from the airflow by the centrifugal force and trapped on the wall, and then the dust particles fall into the collecting bag by gravity. The Cyclone Eco Hopper is specially suitable for bigger size of materials, such as wood pellets, which is a new trend for the power plant to generate electricity as clean energy.



    General Arrangement


    Dust control


    Customer visiting

    Our Company

    With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

    Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.

    OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.

    We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
