    22M Marine Knuckle Boom Crane

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-FB-2.5T22M
    Certification : ISO9001/CE/ABS/CCS/BV
    Supply Ability : 100 sets per year
    Delivery Time : 90 days
    Price : Negotiation
    • Product Details
    • Company Profile

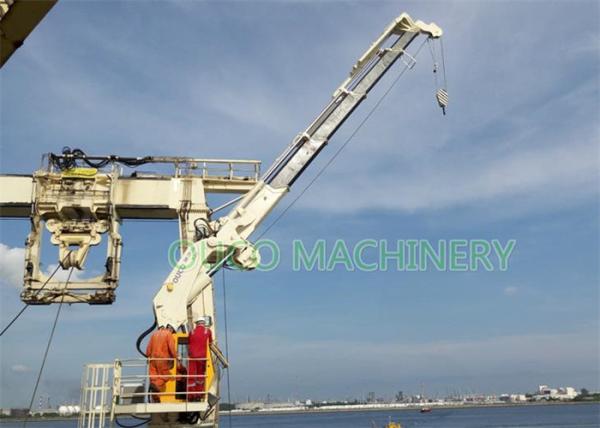

    22M Marine Knuckle Boom Crane

    22M Marine Knuckle Boom Crane


    Product Description

    We are an integrated company of industry and trade,our factory specialize in this field for many years. We can

    design and manufacture any type marine/offshore cranes based on your technical requirements.

    For an example:
    This product is called 2.5T22M crane, because the largest feature is that the crane can lift 5T ( Maximum weight ) at

    11 meters ( the length of boom ). You may need 4T40M, 3T30M, 5T50M ETC. We can manufacture it that you want.

    Specification

    SWL2.5T@22M&5T@11M
    MAX WORKING RADIUS22m
    MIN WORKING RADIUS3m
    HOISTING SPEED0~12m/min
    HOISTING HEIGHT30m
    SLEWING SPEED~0.5r/min
    SLEWING ANGLE360°
    LUFFING TIME~ 70s
    EXTENSION TIME~150s
    WORKING CONDITION

    TRIM ≤2°

    HEEL ≤5°

    ELEC-MOTOR POWERY160K-4-H
    POWER45kw
    Speed1475r/min
    POWER RESOURCEAC415V/50HZ
    PROTECT CLASSIP56
    INSUKATE CLASSF
    WORKING TYPES1

    General Arrangement


    Manufacturing at OUCO workshop


    FAQ

    1. Can this type work in hazardous environment?
    Sure! We can customize for you, acid proof or explosion proof, no problem for that.
    2. Can you provide the serious lifting tools?
    Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
    3. How can we install the crane?
    Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
    4. Safety device
    Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
