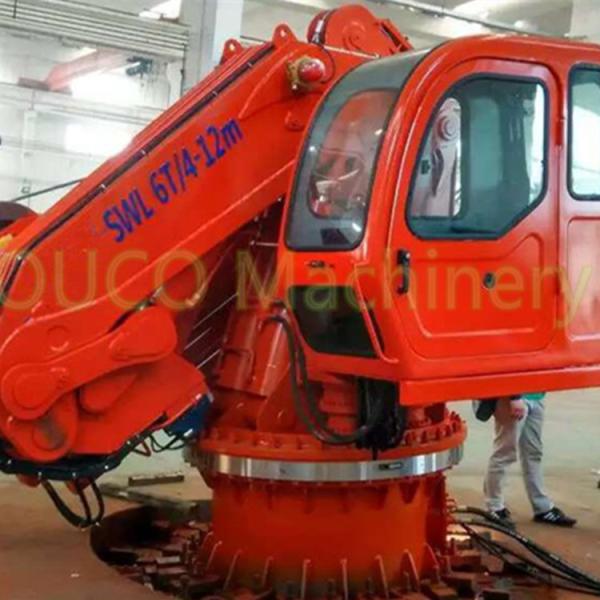

    6t Offshore Pedestal Hydraulic Folding Boom Crane

    Ask Lasest Price
    Brand Name : OUCO
    Model Number : OUCO-2T6M-KBT-01
    Certification : ABS/BV/CCS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 300 units per year
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    6t Offshore Pedestal Hydraulic Folding Boom Crane

    6t Offshore Pedestal Hydraulic Folding Boom Crane


    FAQ:

    Q:1. What's the information should I provide when inquiry?
    A: More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
    Q:2. How many operating methods for my selection?
    A: Standard operating methods:
    A: pendent controller with push buttons .B: remote control with push buttons
    C: cabin(space capsule seat) control with joystick. Choose any type as you like.
    Q:3. Can this type work in hazardous environment?
    A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
    Q:4. Can you provide the serious lifting tools?
    A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
    Q:5. How can we install the crane?
    A: Our senior engineer can be your side to do the installation guide service and training.
    Q:6. Safety device
    A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.

    Technical Specifications:
    SWL6T@12M
    MAX WORKING RADIUS12m
    MIN WORKING RADIUS2.5m
    HOISTING SPEED0~15m/min
    HOISTING HEIGHT25m
    SLEWING SPEED~0.5r/min
    SLEWING ANGLE360°
    LUFFING TIME~ 45s
    EXTENSION TIME~45s
    WORKING CONDITION

    TRIM ≤2°

    HEEL ≤5°

    ELEC-MOTOR POWERY160K-4-H
    POWER11kw
    Speed1475r/min
    POWER RESOURCEAC415V/50HZ
    PROTECT CLASSIP56
    INSUKATE CLASSF
    WORKING TYPES1
    Load test at workshop:
