| Brand Name : | OUCO |
| Model Number : | OUCO-1.7T8.3M-KTB-Crane |
| Certification : | ISO,CE, BV, API-2C |
| Price : | Negotiation |
| Payment Terms : | T/T,Western Union,T/T |
| Supply Ability : | USD 50000-100000 /Set |
| Delivery Time : | 30 Days |
Product Description:

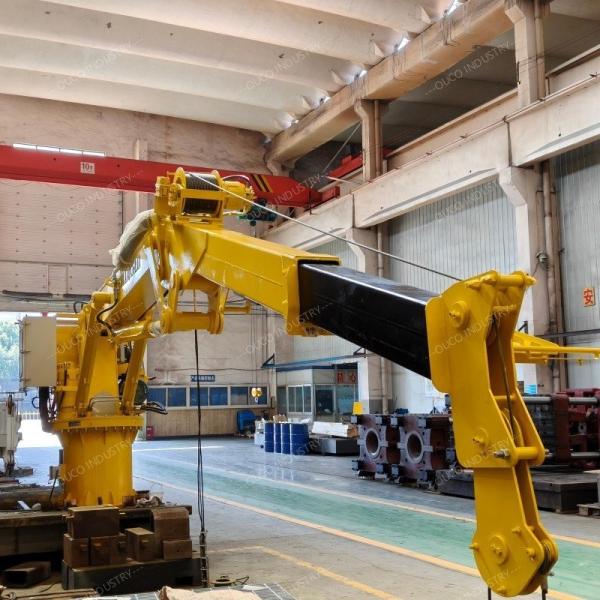

The OUCO 1.7T8.3M Knuckle Boom Telescopic Marine Crane is a super flexible lifting solution, perfect for tough marine jobs and tight spaces on ships. It combines a folding arm with a telescopic boom, giving you high load capacity and the ability to handle different working conditions. Its compact design makes it ideal for vessels with limited deck space, letting you make the most of your available area. Powered by a fully hydraulic system, it ensures smooth and precise control.
Parameters
| TECHNICAL SPECIFICATION | ||
| 1 | SWL | 1.7T8.3M |
| 2 | MAX.WORKING RADIUS | 8.3m |
| 3 | MIN.WORKING RADIUS | 1.5m |
| 4 | HOISTING SPEED | 0~12m/min |
| 5 | HOISTING HEIGHT | 20m |
| 6 | SLEWING SPEED | 1.0r/min |
| 7 | SLEWING ANGLE | 360° |
| 8 | WORKING CONDITION | |
| TRIM | ≤2° | |
| HEEL | ≤5° | |
| 9 | DESIGN TEMPERATURE | -10°~+45° |
| 10 | HPU | 18.5KW |
| 11 | LUFFING ANGLE | 0-75° |
| 12 | POWER RESOURCE | AC380V/50HZ |
| 13 | MOTOR SPEED | 1465r/min |
| 14 | ELEC-MOTOR POWER | Y180M-4-H |
General Arrangement Drawing
Product Picture
Production Process
About OUCO Company
Customer Build
OUCO Group has been specializing in the field of cranes for more
than 10 years. OUCO can design and manufacture any type of cranes,
grabs and other handling equipment according to your requirements.
To better protect the safety of our customers' goods, we provide professional, environmentally friendly, convenient and efficient packaging services. Our comprehensive service system results in a high level of customer satisfaction.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
OUCO factory is certified by SGS, 1S09001, CE, BV, CCS, and other authoritative institutions.
For more details, please feel free to contact us.Welcome to visit our factory!
|
|
